Presonus

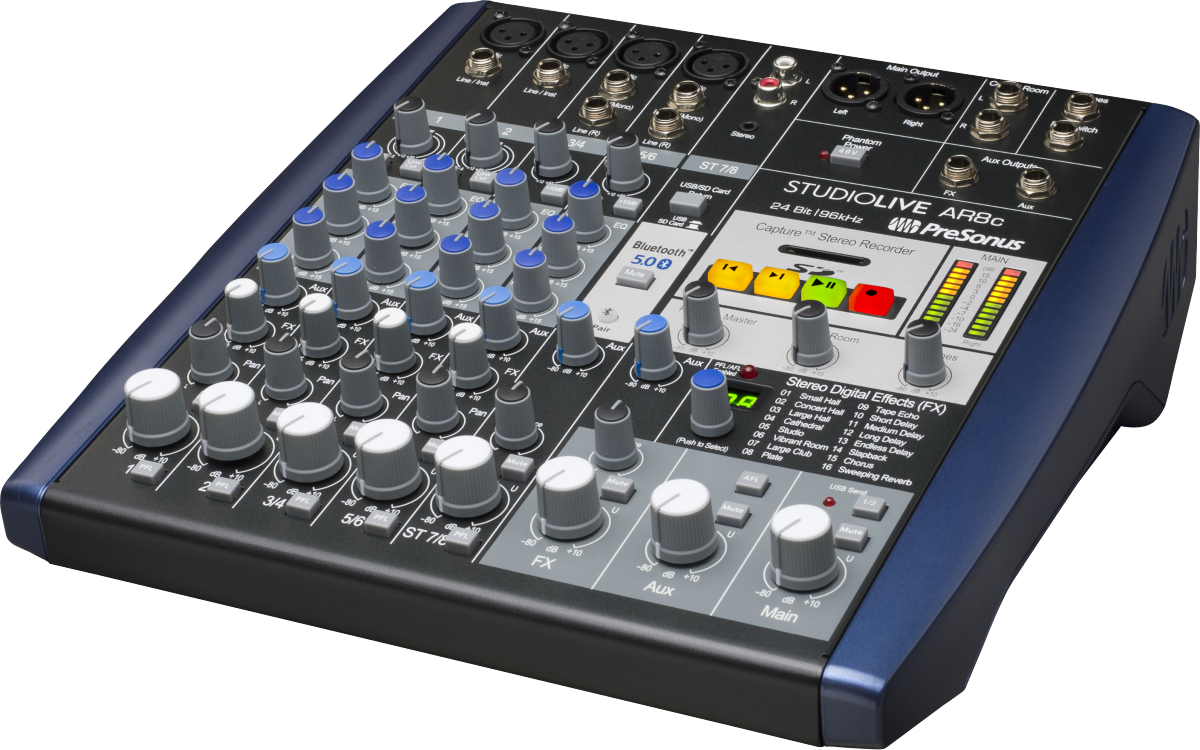

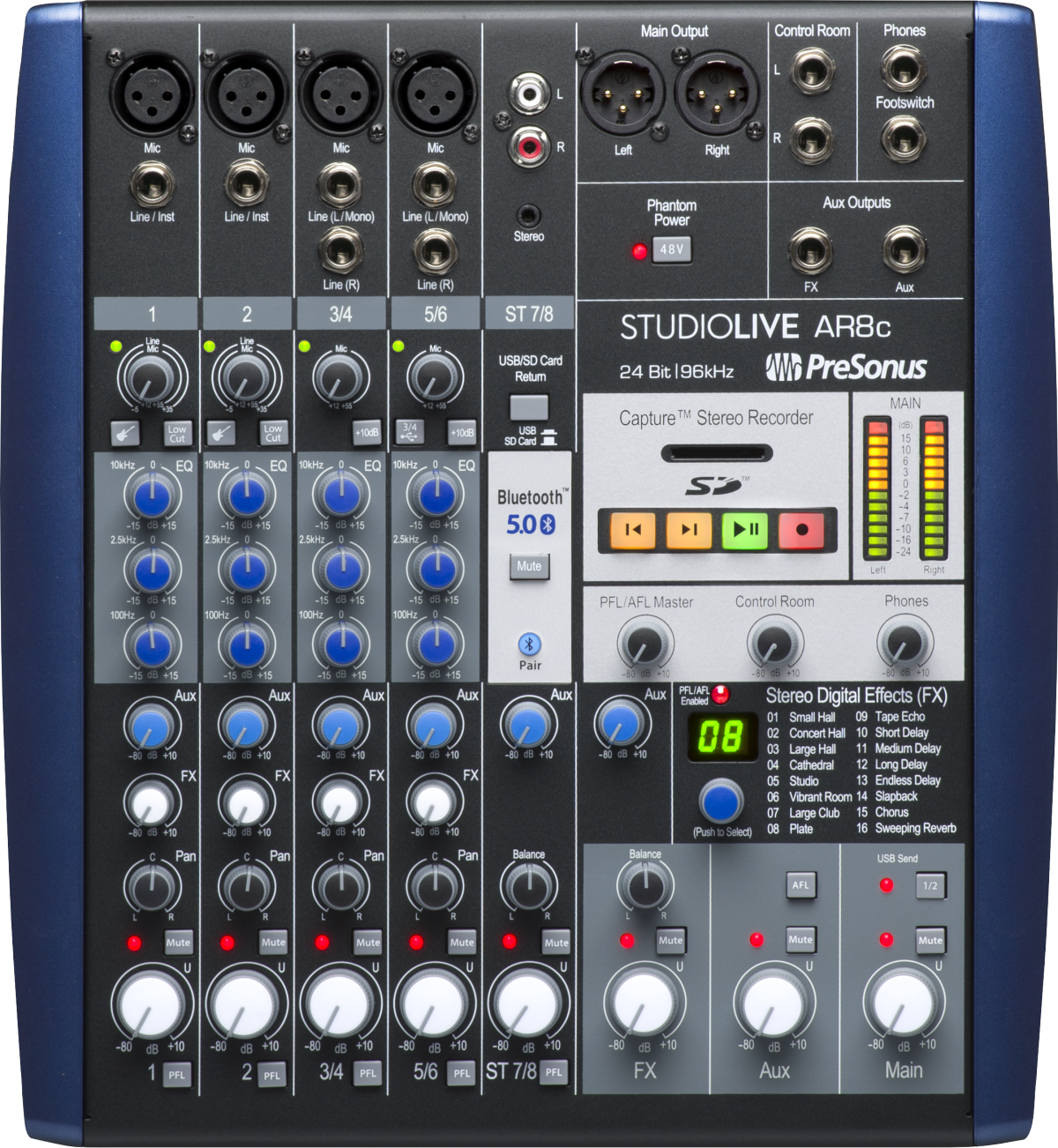

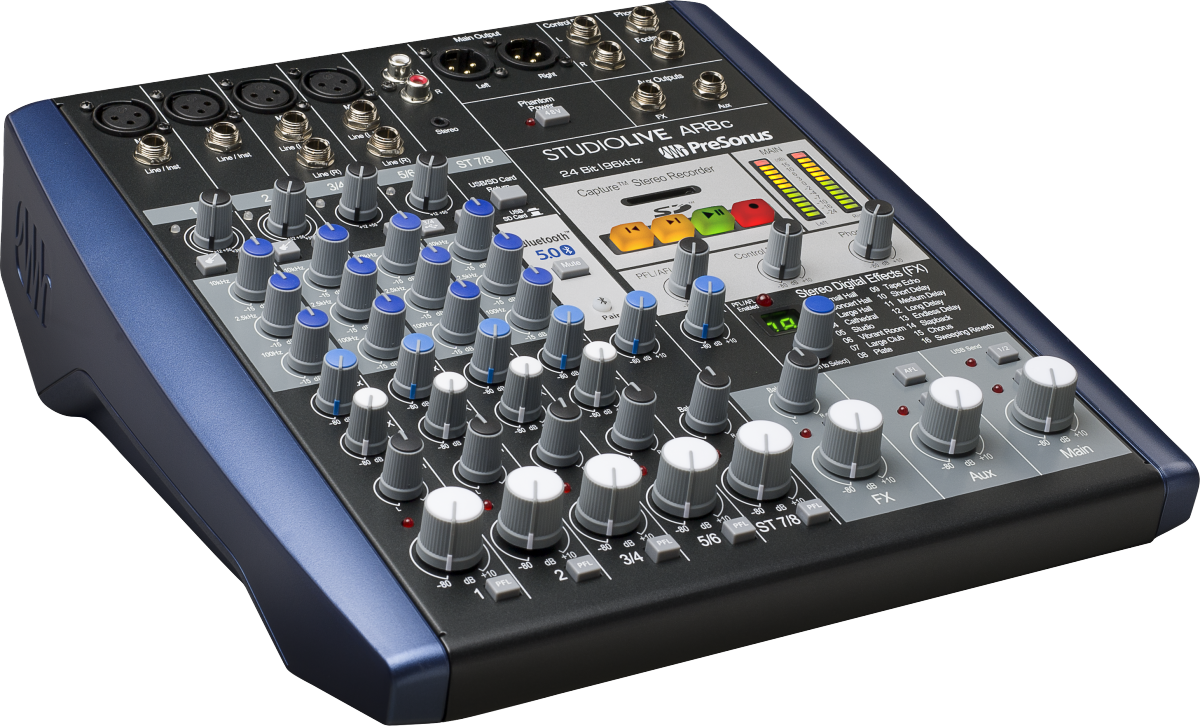

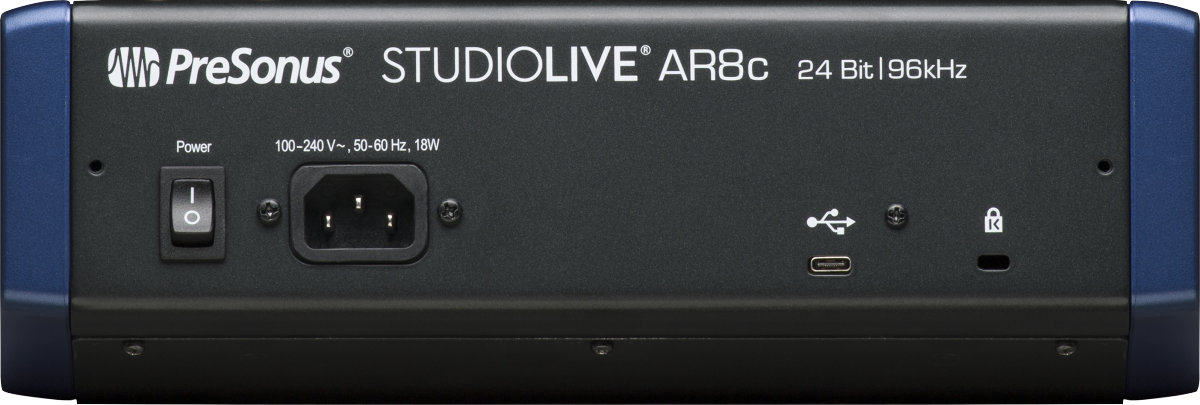

PreSonus® StudioLive® AR8c Analog Mixer, Blue
PreSonus® StudioLive® AR8c Analog Mixer, Blue
SKU:XPSMAR8C
Regular price
$499.99 USD
Regular price
$499.99 USD
Sale price
$499.99 USD
Unit price
per
Couldn't load pickup availability
With its instantly familiar analog mixer design, the StudioLive® AR8c is the easiest way to record podcasts, livestreams, and music productions. Featuring a pristine analog front end with four high-gain XMAX mic preamps and an 8x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR8c's hybrid design makes it simple to mix and record. Add in tools like a musical 3-band analog EQ, mic/line boost for low-level input sources and consumer devices, Bluetooth® connectivity, a stereo SD recorder, and high-impedance instruments inputs, and you have a broadcasting and recording powerhouse that fulfills the needs of modern musicians and content creators.
FEATURES
- 8x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 8-channel analog mixer with:
- 4 balanced microphone inputs with XMAX mic preamps, 2 instrument/line inputs, and 2 pairs of stereo balanced line inputs
- Stereo Super Channel (Ch. 7/8) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac® and Windows
StudioLive®
Blue
CN
Electronics
100-120V
+48V, ±3V, Global
Performance
24
105 dB (A-Weighted, 48 kHz)
Inputs
1/4” TS Female, Unbalanced, Hi-Z
> 108 dB (Mid Gain, Unweighted)
20 Hz to 20 kHz, +0.5/-1.5 dB
43 dB, ±1 dB (+12 to +55 dB)
+9 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
1/4" TRS, Balanced
20 Hz to 20 kHz, +0.5/-1.5 dB
Mono: 40 dB, ±1 dB, Stereo: 0 dB or +10 dB
10 kΩ (Balanced)
+26 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
85 dB (+4 dBu)
<0.01% (1 kHz, -1 dBFS, A-Weighted)
XLR Female, Class A XMAX
65 dB (1 kHz, +55 dB Gain)
< 128 dBu (+55 dB gain, 150Ω Input, 20 Hz-22 kHz)
20 Hz to 20 kHz, +0.5/-1.5 dB
43 dB (+12 to +55 dB)
1 kΩ
+9 dBu ± 1.0 dB (Unity Gain)
94 dB (+4 dBu)
<0.01% (Minimum Gain, A-Weighted)
Outputs
>103 dB (A-Weighted)
20 Hz to 20 kHz, +0.5/-1.5 dB
150 mW /Channel at 60 Ω
<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
1/4" TRS, Balanced
+18 dBu
100 Ohms
>108 dB (A-wtd)
Hardware
USB 2.0
Miscellaneous
IEC
44.1, 48, 88.2, 96 kHz
